Medium duty cable take-ups
-

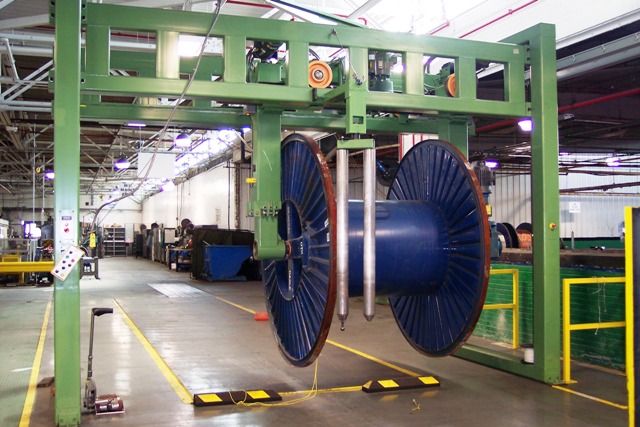

THE PAY-OFF CONSISTS OF A STAND WHERE THE MOBILE TAKE-UP WAGON HANGS.
THE TWO TELESCOPE ARMS OF THE WAGON CAN BE MOVED SIDEWAYS ON THE MAIN SHAFT BY MEANS OF THE WORM GEAR MOTOR AND THE WIDTH SCREWS.
THE PINTLES CAN BE RAISED AND LOWERED BY MEANS OF THE TWO WORM GEAR MOTORS.
THE MOVEMENTS OF THE PINTLES ARE STOPPED BY LIMIT SWITCHES IN THEIR END POSITIONS.
THE DRUM IS DRIVEN BY THE DC MOTOR OVER A 4-STEP GEAR BOX.
THE SPEED AND THE TORQUE OF THE DC MOTOR IS REGULATED BY MEANS OF POTENTIOMETER PLACED IN THE SUSPENDED PANEL.
EACH TIME THE PINTLES ARE LIFTED TO WORK POSITION, THE WAGON IS CENTERED IN THE STAND BY MEANS OF THE TWO COMPRESSED-AIR CYLINDER.
THE WAGON CAN ALSO BE CENTERED WITH A PUSHBUTTON IN THE SUSPENDED PANEL.
